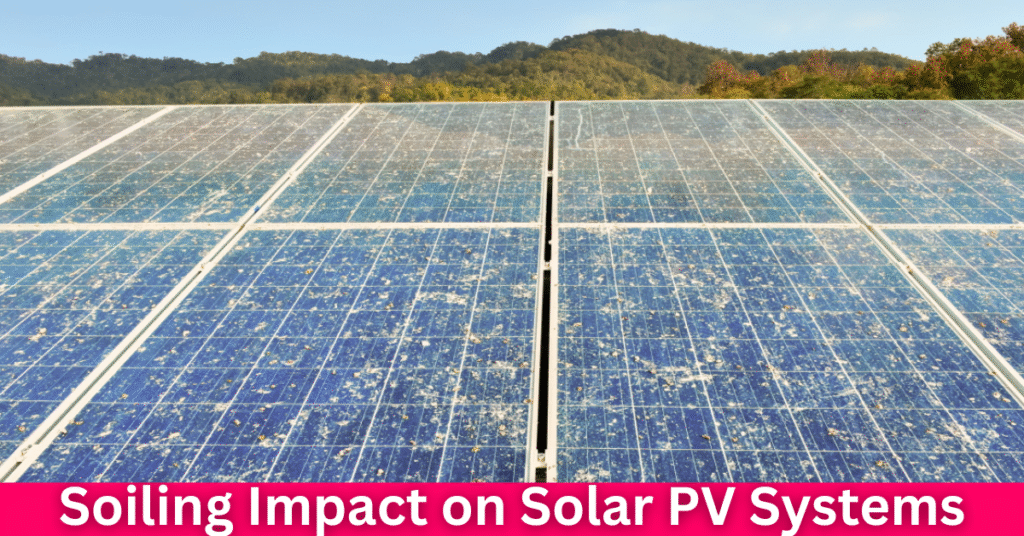

What Is Soiling — and Why It Matters

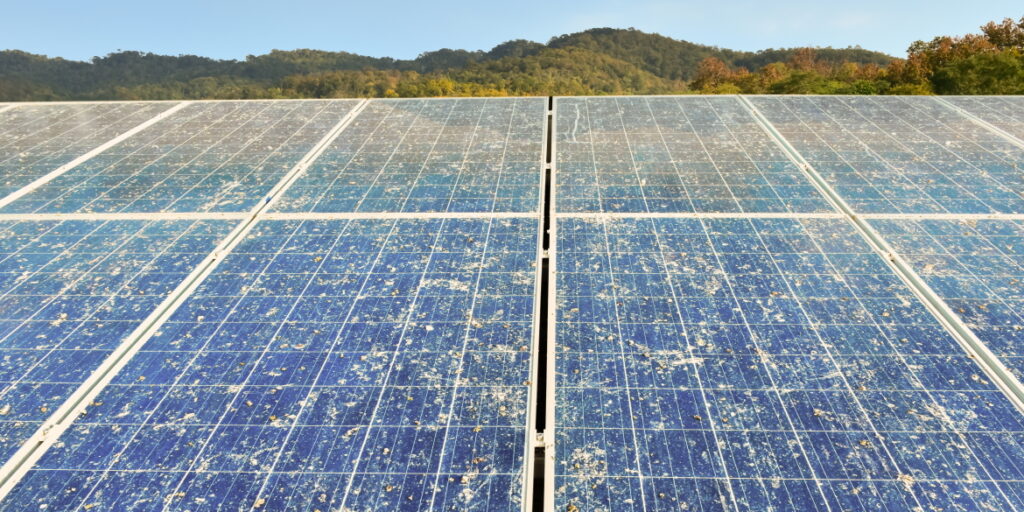

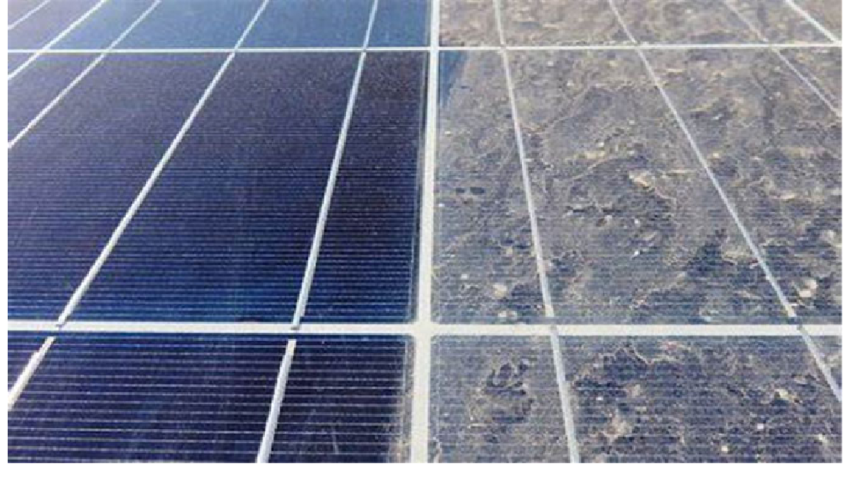

Soiling refers to the accumulation of dust, sand, pollen, soot, bird droppings, agricultural particles, and other environmental debris on PV module surfaces. These obstructions block or scatter sunlight, significantly reducing the output and efficiency of solar panels.
How Much Power Do You Really Lose?
Global average losses: Around 3–5% annually, based on regional weather patterns and cleaning frequency.
In arid or dusty climates, like deserts or areas near roads or industry, soiling losses can range from 5% up to 15% daily, and extreme cases approach 40–50% during heavy dust accumulation or sandstorms.
Experimental tests show that even 4 g/m² of fine dust can cut output by ~26%; heavier dust layers (~7–20 g/m²) have caused up to 45% reduction.
Uniform vs. Uneven Soiling — Why It Hits Harder
Uniform soiling reduces short-circuit current and power output uniformly.
Non-uniform or patchy soiling (e.g. bird droppings, edge build-up) can cause hot spots, irreversible damage, and lead to power losses up to 10% higher than the measured short-circuit current loss.
Uneven shading can cause bypass diodes to trigger, reducing power flow and creating thermal stress on modules.
Long-Term Consequences Beyond Just Less Energy
Without cleaning for 5–10 years, cumulative losses mount. A site can lose half a year’s worth of output due to persistent soiling, and panel lifespan may shorten due to permanent glass etching or cell damage.
Dirt, moisture, and pollutants can chemically bond to glass—leaving stains or micro-scratches that impact transparency. Aggressive cleaning later may cause further damage if not handled properly.
Soiling also raises panel temperature (~10 °C higher observed), which can reduce efficiency by ~7%, degrade encapsulants, induce corrosion, or trigger potential-induced degradation (PID).
What Influences Soiling Levels?
Geographic location: Desert regions, dry seasons, urban pollution, industrial zones have higher soiling rates.
Tilt angle & orientation: Flatter panels collect more dust; steeper angles and tilted surfaces benefit from passive self-cleaning by rain.
Climate & rainfall: Frequent rain naturally washes panels, reducing soiling. In dry zones, panels can lose energy daily. Morning dew can actually increase adhesion, boosting particle buildup
Dust characteristics: Finer particles (like soot or carbon-based dust) block more light per gram and degrade performance more than larger particles.
Mitigation Strategies: Keep Panels Clean and Profitable
Routine Cleaning:
- Monthly cleaning is recommended in dusty climates; after sandstorms, immediate cleaning is advised.
Manual brushing, low-pressure water cleaning, semi-automated rollers, or robotic systems are options depending on scale and water availability.
Monitoring Soiling Levels:

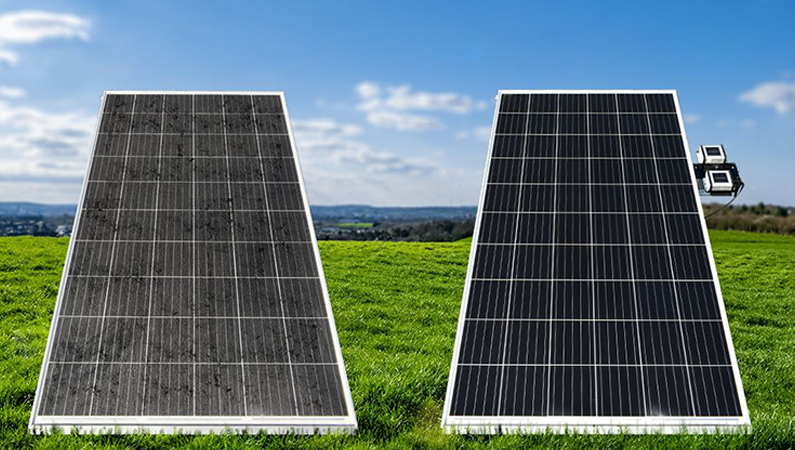

- Some modern systems include light or imaging sensors to detect soiling and prompt cleaning. One recent system detected up to 55% visible light blockage, enabling weekly cleaning recovery of ~3%.
Anti-Soiling Coatings & Design:
- Hydrophobic coatings and glass textures help reduce particle adhesion; unframed or half-cell designs cut edge buildup and soiling hotspots.
Optimized Tilt or Stow Design:
- Steep tilt angles or night-time stowing (especially with trackers) help reduce buildup and enhance passive cleaning.
ROI Impact & Economic Considerations
Unaddressed soiling costs more than the cleaning expense: lost energy reduces payback and long-term revenue.
Economic modeling typically balances yield lost vs cleaning cost; in many arid zones, regular cleaning pays itself off quickly.
For rooftop users, simple seasonal cleanings often deliver noticeable restoration in yield; for utility-scale arrays, automated cleaning systems or robotic washers can be justified.
FAQ’s
1: How much efficiency can soiling reduce?
Typical global losses range from 3–5% annually, but in dry or dusty regions, cumulative losses can hit 15–50%, especially when left unattended.
2: Are some dust types more harmful?
Yes—fine particles like carbon or cement dust reduce light transmittance more than larger grains. Even small densities (~4 g/m²) can cut power by 20‑30%.
3: Can soiling cause permanent damage?
Yes—hot spots, glass etching, cell degradation, PID, or corrosion over 5‑10 years can permanently lower panel performance and shorten lifespan.
4: How often should I clean panels?
In dusty, arid climates, monthly or post-storm cleanings help maintain output. In humid or rainy regions, quarterly or seasonal cleanings often suffice.
5: Are self-cleaning or coating options effective?
Anti-soiling coatings and hydrophobic glass help, but currently most PV systems rely on periodic water cleaning. Emerging technologies like electrodynamic screens are promising but not yet mainstream
Summary & Best Practices
- Treat soiling as one of the top yield-draining factors—especially after irradiance.
- Estimate site-specific soiling rates early—via sensors, climatic data, or comparable installations.
- Plan and budget for regular cleaning—manual, semi-automated, or robotic depending on scale.
- Use tilt angle optimization and panel design choices (half-cell, frameless) to reduce dust buildup.
- Monitor module performance—drops in I‑sc or power output may signal soiling before visible dirt appears.
- Prevent long-term soiling damage by combining timely cleaning with safe, low-damage methods.
